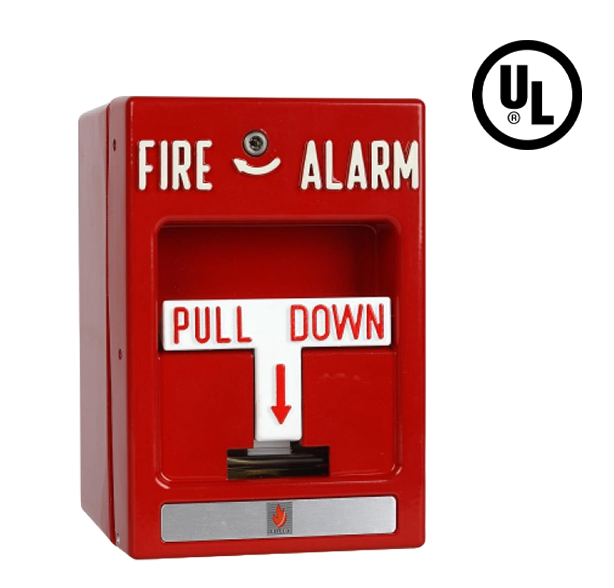

Addressable Manual Pull Stations – LE-DCP-AMS

Features

  • Addressable integrated design
  • All metal construction
  • Single and dual action models available
  • Extremely easy to operate
  • Bi-colored status LED indicates Standby and Alarm conditions
  • Address is programmable in EEPROM
  • Address can be programmed when installed
  • Key lock or hex key lock models available
  • Enclosed switch with glass rod (included)
  • Terminals accept up to 14AWG wire
  • Surface mount back box available



Description

The LE-DCP-AMS are the LIFECO series of addressable manual pull stations that provide a fast and practical means of manually initiating a fire alarm signal. Both single action and dual action manual pull stations are available. Resetting of the pull station requires either a Cat 30 key or a 1/8″ hex key (depending upon the model used). An alarm condition is actuated by pulling down on the handle of the LE-DCP-AMS and LE-DCP-AMS-KL single action models. On the dual action models LE-DCP-AMS-LP and LE-DCP-AMS-KL-LP the Lift and Pull cover must be lifted before pulling down on the pull station handle. Once the pull station is activated, the handle cannot be put back into a normal standby condition without using the key operated reset feature. The LE-DCP-AMS series is electronically addressable and includes a bi-colored status LED. The LED blinks green indicating normal communication with the DCP compatible SLC loop. When an alarm condition is actuated by pulling the handle, the LED will latch Red to indicate the alarm condition.
