Conventional Detector Bases – LE-NS6/LE-NS4/LE-HSC Series

Description

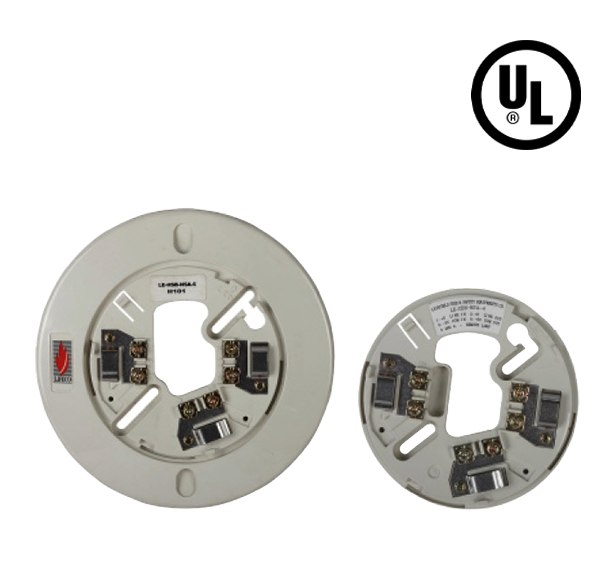

The LE-NS6 and LE-NS4 Series is designed specifically for use with LIFECO Conventional ModelsLE-SLR-24V Photoelectric Smoke Detector, LE-SLR-24H Photoelectric with Heat Smoke Detector and LE-DCD-135/190 Fixed Temperature/Rate-of-Rise Heat Detector. The Base is an electronics free 6” or 4” base featuring a plastic tamper-lock lug. Each base is equipped with a resistor. Refer to the Datasheet for additional specifications. The LE-NS4 base is a 4” version of the LE-NS6 base.

Models LE-HSC-224R, LE-HSC-220R and the LE-HSC-221R are designed specifically for use with the LIFECO Conventional Models LE-SLR-24V, LE-SLR-24H or LE-DCD-135/190. The LE-HSC-(X) R series is a 6” base with two sets of Form “C” relay contacts. Models LE-HSC-224R, LE-HSC-220R and the LE-HSC-221R are also approved for use with LIFECO Conventional Model LE-DFE 135/190.

The LE-HSC-4R is designed specifically for 24 volt 4 wire applications using LIFECO Conventional Models LE-SIJ-24, LE-SLR-24V, LE-SLR-24H or LE-DCD-135/190. The 6” diameter base is current limited. Relay contact place a direct short occurs across the loop when the detector is actuated. Model LE-HSC-4R is also approved for use with previous LIFECO Conventional Model LE-DFE 135/190.

The LE-HSC-L Base Series is designed specifically for use with the LIFECO Fixed Temperature Heat Detectors Models LE-DFE-135/ 190. The LE-HSC-L Series is a 6″ base featuring a current limiting resistor, latching annunciator output and a latching circuit so the alarm LED will remain lit until the control panel has been reset.

  • LE-NS6-224
  • LE-NS4-224
  • LE-NS6-220
  • LE-NS4-220
  • LE-NS6-221
  • LE-NS4-221
  • LE-NS6-100
  • LE-NS4-100
  • LE-HSC-224R
  • LE-HSC-220R
  • LE-HSC-221R
  • LE-HSC-4R
